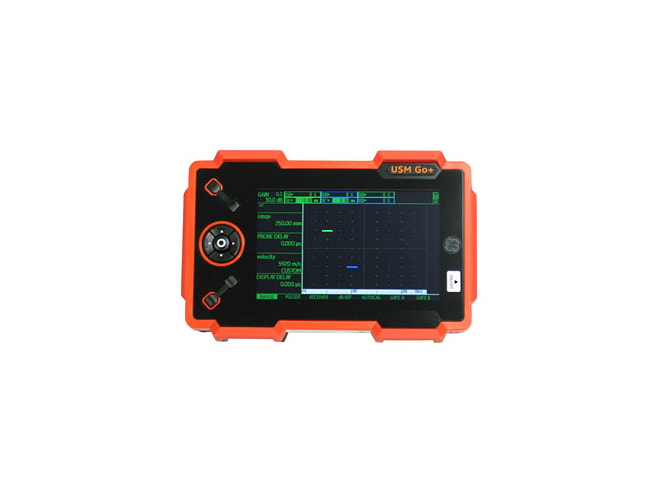

Waygate Technologies USM Go+ Flaw Detector

• USM Go+ comes with D-pad (arrow key) control
• DMS Go+ thickness gauge upgrade available
• LCD display, 800 x 480 pixels
• Flip function allows for left or right hand use
• Pulser (EN12668 specifications)
  • Simulated spike pulser mode
    • 120 to 300V amplitude
  • Uni-polar square wave (optional)
    • 120 to 300V with 10V steps pulser voltage
    • 30 to 500ns with 20ns steps pulser width
  • 50 or 1000 Ohms damping
• Vibration and shock tested
• IP67 dustproof & waterproof

The Waygate Technologies USM Go Flaw Detector has been ergonomically designed to provide an instrument which is light, small and easy to use in the harshest inspection environments. Navigation is simplified using the proven graphical user interface (GUI) and D-pad (arrow key) control, allowing one-handed operation and fast and accurate adjustment.

Waygate Technologies USM Go Flaw Detector Applications:

Weld Inspection

• Trigonometric projections
• AWS
• DAC
• DGS

Inspection of Forgings and Castings

• Manual PRF adjustment
• Phantom echo indicator
• DGS

Inspection of Rails

• High PRF (up to 2000 Hz)
• Lightweight: 850 g (1.87 lb)
• Small size and ergonomics

Inspection of Composites

• RF Display
• 2 gates with B-start triggered with echo in gate A
• TCG correction with high slope 120 dB/μs
• Reflector depth indicated in layer

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT)
