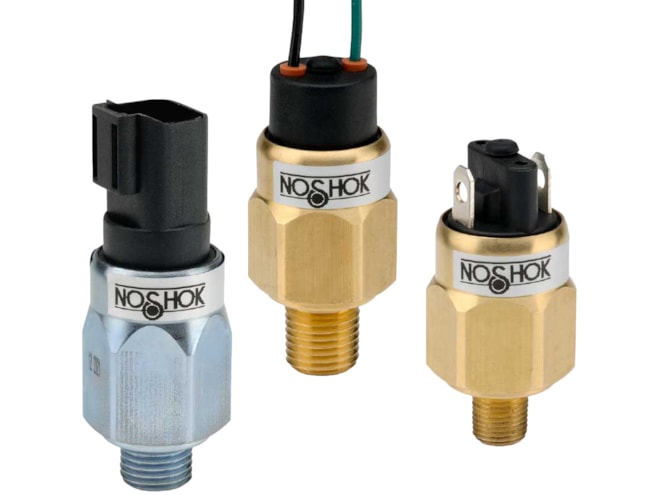

NOSHOK 100 Series Mechanical Compact SPST Pressure Switch

• Vacuum through 6,000psig adjustment ranges
• 100 VA Max Voltage 42 Vdc contact rating
• SPST creep action switch
• Silver-plated, optional gold-plated contacts
• CE compliant to suppress RFI, EMI and ESD
• RoHS compliant
• Environmental rating:
  • IP00 Exposed Terminals
  • IP69 M-12, Flying Leads & Deutsch Integral

The NOSHOK 100 Series mechanical compact SPST pressure switch is a creep action, low current switch intended to be laboratory set. These switches feature Silver-plated contacts with switch adjustment ranges from vacuum through 6,000psig. The 100 Series switch series offers Brass and Zinc-nickel housing material options with NBR, Polyimide, or Buna-N wetted parts depending on model.

Pressure Switch Applications

• Hydraulics & pneumatics
• Pumps & compressors
• Leak detection
• Tank monitoring
• Water management
