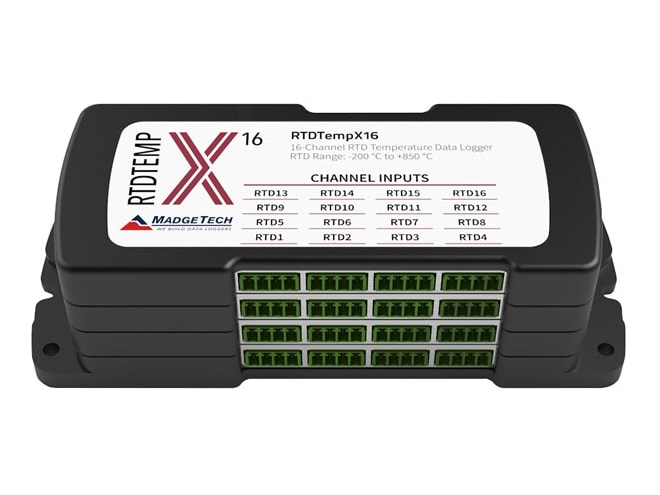

MadgeTech RTDTempX Temperature Data Loggers

• ±0.04 °C calibrated accuracy
• Real-time operation
• Up to 4 Hz reading rate
• Memory capacity of 2,700,000+ readings
• Measures temperatures from -200 °C to +850 °C
• Pushbutton or programmable start time
• Title channels
• Calibration certificate included
• External power or user-replaceable battery
• Accepts 2, 3 and 4-wire RTD’s
• Simple setup and installation
• Minimal long-term maintenance
• Long-term field deployment

The MadgeTech RTDTempX Series consists of 4, 8, 12 and 16-channel RTD based temperature data loggers with a reading rate of up to 4 Hz. Improvements include the elimination
of an interface cable (uses standard USB-A to Micro USB), increased memory for more readings and increased download speed.

To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.

Using the MadgeTech Software, starting, stopping and downloading from the RTDTempX Series data loggers is simple and easy. Graphical, tabular and statistical data is provided
for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
