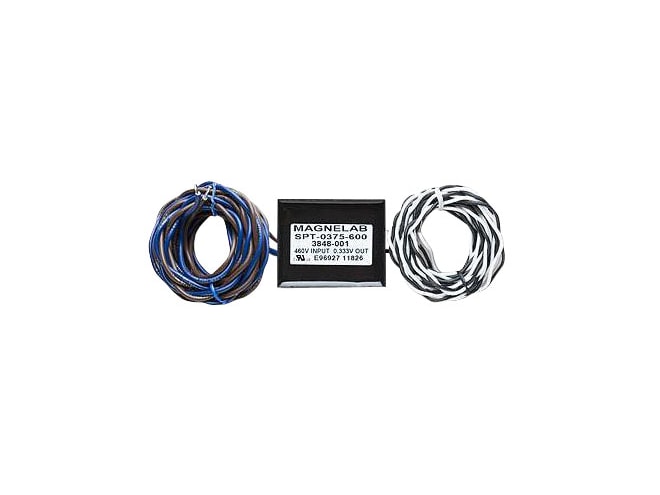

HOBO MAG-SPT Series AC Potential Transformers

• Measures True RMS (sinusoidal and non-sinusoidal waveforms)
• Measurement ranges: 150, 300, 600 Volts AC
• Accuracy: ±1% (from 10% to 130% of rated voltage)
• 2 input channels of AC Current and/or Voltage
• Connections: 8-ft PVC insulated wire, UL1015
• Output signal: 0.333 Volt at rated input voltage

The HOBO MAG-SPT Series AC Potential Transformers measure True RMS for accurate readings of sinusoidal and non-sinusoidal
waveforms. Three measuring ranges are available including 150, 300, 600 Volts AC. The Magnelab Transformers are used with
the FlexSmart TRMS Module to provide accurate measurement of AC voltage. One or two PTs can be used with each FlexSmart
TRMS module. This sensor offers an accuracy of ±1% (from 10% to 130% of rated voltage), but because this transformers ties
directly into the line, it should be used only by qualified personnel.
