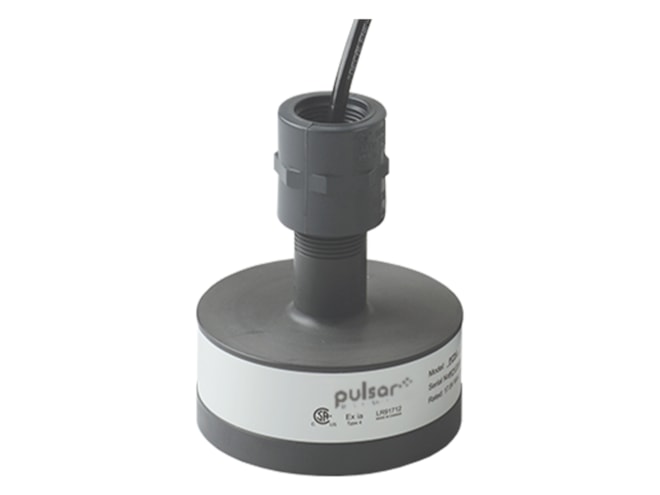

Greyline Instruments PZ34 Level Sensor

• Maximum Range: 32 ft. (10 m)
• Minimum Range (Deadband): 16″ (406.4 mm)
• Operating Frequency: 46 KHz
• Beam Angle: 8°
• Operating Temperature: -40° to 150° F (-40° to 65° C)
• Maximum Operating Pressure: 20 psi (1.35 bar)
• Exposed Materials: PVC
• Sensor Mounting: 3/4″ NPT
• Includes 25’ coaxial cable
• CSA rated Intrinsically Safe Class I, Groups C,D, Class II, Groups E,F,G with optional Intrinsic Safety Barrier

Designed specifically for open channel flow applications, the Greyline PZ34 level sensor can be installed 16″ or more above the highest water level. It is rated for measurement ranges up to 32 feet.

The Greyline PZ34 sensor mounts above the flowing liquid so there is no fouling and no maintenance is required. It will not be damaged by accidental submersion.
