Fluke FEV100 Electric Vehicle Charging Station Adapter Kit

• Input voltage:
  • UL1/N=120V, UL2/N=120V, UL1/L2=208V, 60Hz (3-phase system)
  • UL1/N=120V, UL2/N=120V, UL1/L2=240V, 60Hz (single-phase system)
• Max. 250V 50/60Hz, CAT II 250 V output terminals
• -4° to 104°F (-20° to 40°C) operating temperature
• SAE J1772 socket, 16A (type 1, 5P single-phase) EV connector
• 3 year warranty

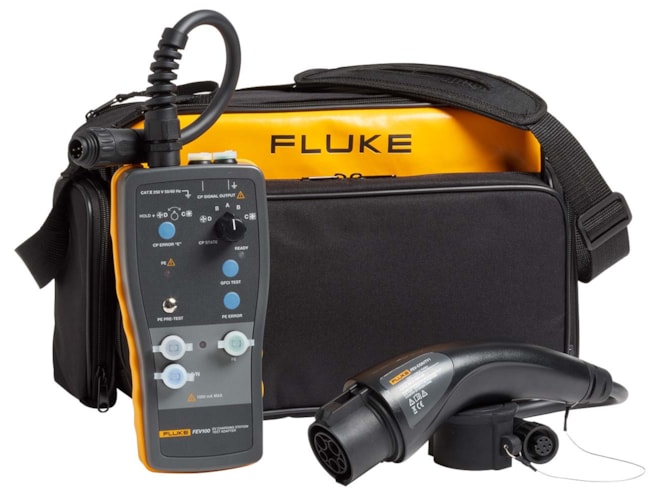

The Fluke FEV100 Electric Vehicle Charging Station Adapter Kit is designed to easily test the
safety and performance of type 1, level 1 or level 2 electrical vehicle AC charging stations (EVSE).
This test adapter simulates the presence of an electrical vehicle, allowing you to conduct tests
such as ground fault checks, insulation of wires, measuring voltage and duty cycle to see max
current available for charging in combination with other Fluke testing tools such as a digital
multimeter or oscilloscope. The FEV100 can be used to verify if an EVSE is working properly after
installation as well as during periodic maintenance, or troubleshoot an EVSE if it is not delivering
the appropriate charge.

Available measurements

• Grounding system Pre-Test
• Phase indicator (presence of voltage)
• CP State simulation (A, B, C , D ) for Control Pilot
• CP Error “E” simulation (Control Pilot CP signal short-circuited to PE)
• GFCI ground fault circuit interrupter test
• Fault Voltage test in normal conditions (no GFCI test current) and during GFCI test
• PE Error (Earth Fault) simulation (interruption of PE conductor)
• Measurements on live conductors (L1, L2/N) and on PE ground conductor
• Test of Control Pilot CP signal
