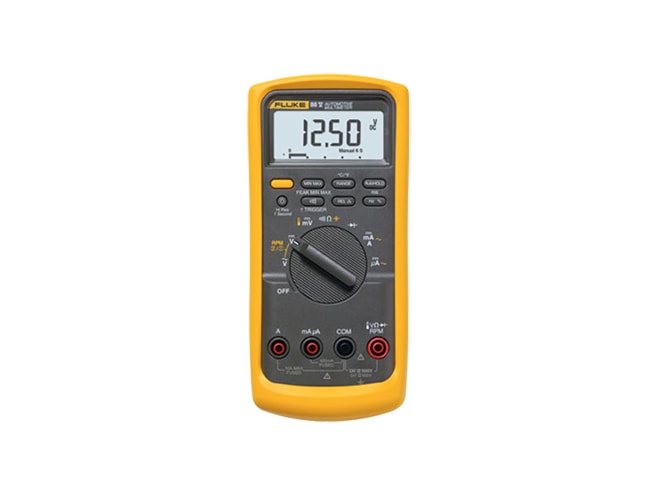

Fluke 88V Automotive Multimeter

• DC Voltage
  • Maximum Voltage: 1000V
  • Accuracy: ±(0.1% + 1)
  • Best Resolution: 0.01 mV
• AC Voltage
  • Maximum Voltage: 1000V
  • Accuracy: ±(0.5% + 2)
  • AC Bandwidth: 5 kHz
  • Best Resolution: 0.01 mV
• DC Current
  • Maximum Amps: 10A
  • Amps Accuracy: (0.4% + 2)
  • Best Resolution: 0.001 mA
• AC Current
  • Maximum Amps: 10A
  • Amps Accuracy: ±(1.2% + 2)
  • Best Resolution: 0.001 mA
• Also Measures:
  • Resistance (Max. 50 MΩ)
  • Capacitance (Max. 9,999 µF)
  • Frequency (Max. 200 KHz)
  • Duty Cycle (Max. 99.9%)
  • Conductance (Max. 60.00 nS)
  • Temperature (-328.0°F to 1994.0°F)

The Fluke 88V automotive multimeter has improved measurement functions, trouble-shooting features and accuracy to solve
more problems on conventional and hybrid vehicles. The Fluke 88V has all the standard multimeter features such as the
ability to measure voltage, current, continuity and resistance. Additionally, the 88V multimeter can perform diode tests
and pulse width measurements.

Other features of Fluke 88V automotive multimeters include 0.1% DC accuracy, current measurements up to 10A (20A for
30 seconds), millisecond pulse width measurements for fuel injectors, min/max/average recording, peak min/max to record
transients as fast as 250 µs and auto/manual ranging for maximum flexibility.

The Fluke 88V automotive multimeter comes standard with test leads, a 9V battery (installed), carrying case and user’s
manual. There is an optional kit available as well for the Fluke 88V automotive multimeter.

Optional Fluke 88V/A Combo Kit Contents:

• Fluke 88V automotive multimeter
• TL224 heat-resistant, silicone test leads
• TP220 removable, sharp-point test probes
• AC285 large jaw alligator clips
• TPAK magnetic hanger
• 80BK-A temperature probe
• RPM80 inductive pick-up
• Automotive backprobe pins
• Insulation piercing probe
• C800 durable carrying case
