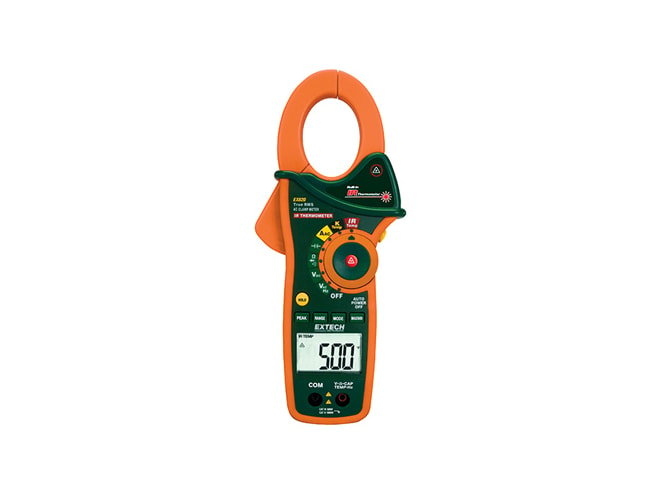

Extech EX820 Clamp Meter & IR Thermometer

• Ranges:
  • AC current: 0.1 to 1000A
  • AC voltage: 0.1mV to 600V
  • DC voltage: 0.1mV to 600V
  • Resistance: 0.1 to 40MΩ
  • Capacitance: 0.001nF to 40,000µF
  • Frequency: 0.001 to 4kHz
  • IR Temperature: -58 to 518°F
  • Type-K temperature: -4 to 1400°F
• Distance to spot : 8:1
• Laser pointer for IR temperature
• Peak function captures inrush currents and voltage transients
• Data Hold ‘freezes’ data in display
• 1.7 inch jaw opening for conductors up to 750MCM or two 500MCM Auto power off
• Autoranging with manual range button
• 4000 count backlit dual display

The Extech EX820 clamp meter & IR thermometer is a 1000A True RMS clamp-on multimeter that features a built-in infrared
thermometer with a laser pointer that’s an excellent troubleshooter for locating hot spots and overheating motors.
The EX820 is a versatile instrument capable of accurate measurements of AC current, AC/DC voltage, resistance,
capacitance, frequency and temperature via a type-K probe. The EX820 features 1.7″ jaws, large enough for cables
up to 750MCM (or two 500 MCM cables). The ergonomically designed double-molded housing offers a better grip for
one-hand operation and results are shown on the backlit, 4000 count dual LCD display.

Additional features of Extech EX820 clamp meters include: diode test, audible continuity beeper, autoranging
with manual range button, Data Hold, Min/Max, Auto Power Off, and Peak Hold that captures inrush currents and transients.

The meter is available with limited NIST certification which covers all functions except IR temperature.
