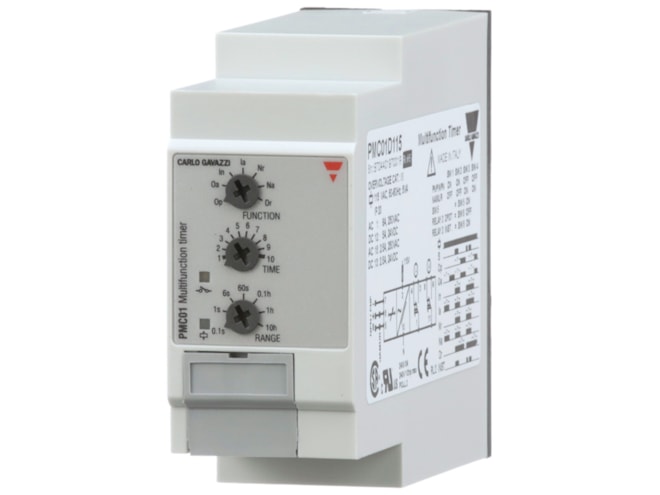

Carlo Gavazzi PMC01 Timer

• 0.1s to 100h time range
• 8A SPDT or 2x 8A SPDT relay output
• 115VAC power supply
• Knob selection of time range
• Knob adjustable time setting
• 7 knob selectable functions
• LED indication for relay status and power supply ON
• Plug in mounting

The Carlo Gavazzi PMC01 timer is a multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h. The PMC01 includes a 15VDC, 10mA (1 relay) or 24VDC, 15mA (2 relays) supply for PNP/NPN sensors and 8.2 VDC supply for Namur sensors.

Selectable functions

• Op – Delay on operate, manual start
• Oa – Delay on operate, automatic and manual start
• In – Interval, manual start
• Ia – Interval, automatic and manual start
• Nr – Interval with no time reset, manual start
• Na – Interval with no time reset, automatic and manual start
• Dr – Delay on release
