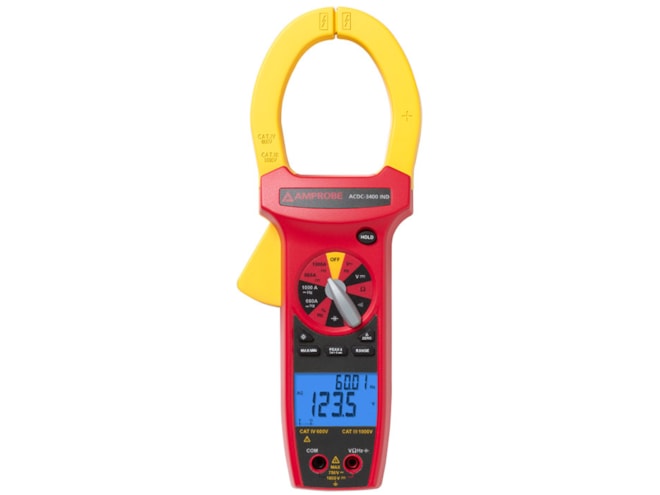

Amprobe ACDC-3400 IND Clamp Meter

• DC Voltage
  • Ranges: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
  • Accuracy: ± (0.5 % rdg + 2 dgts)
• AC Voltage
  • Ranges: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
  • Accuracy: ± (1.5 % rdg + 8 dgts)
• AC/DC Current
  • Ranges: 660.0 A, 1000 A
  • Accuracy: up to ± (2.0 % rdg + 5 dgts)
• Resistance
  • Ranges: 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ
  • Accuracy: up to ± (1% rdg + 5 dgts)
• Capacitance
  • Ranges: 6.600 nF, 66.00 nF, 660.0 μF, 6.600 μF, 66.00 μF, 660.0μF, 6.6 mF
  • Accuracy: up to ± (3.0 % rdg + 10 dgts)
• Frequency
  • Ranges: 66.00 Hz, 660.0 Hz, 6.600k Hz, 66.00 kHz, 660.0 kHz, 1.000 MHz
  • Accuracy: ± (0.1 % rdg + 3 dgts)
• Continuity: Audible Indication < 30 Ω
• Duty cycle
• Diode Test current: 1.0 mA (approximate)
• Overload protection
• 3-3/4 digit LCD with a 66-segment analog bar-graph
• Jaws accommodates conductors up to 2” in diameter
• CAT IV 600 V, CAT III 1000 V safety rating

The Amprobe ACDC-3400 IND is a CAT IV rated clamp meter ideal for industrial applications and utilities that require
an extra level of safety. The meter includes True RMS sensing for accuracy and dependability and extra large jaws to
accommodate wide diameter wires.

The Amprobe ACDC-3400 IND measures AC current up to 1000 A, voltage up to 750VAC / 1000VDC, frequency, resistance,
capacitance and duty cycle. Measurements are displayed on the 3-3/4 digit LCD with a 66-segment analog bar-graph.
The ACDC-3400 IND has many features including peak hold, relative zero, an audible continuity test, auto and manual
ranging, auto power off, data hold, diode test and overload protection. Amprobe ACDC-3400 IND clamp meters have a large
jaw opening and accommodates conductors up to 2 inches (51mm) in diameter.

The Amprobe ACDC-3400 IND ships complete with:

• Test leads
• Battery
• Manual
• Carrying case
